Android中JNI调用–文件操作

JNI 是 Java Native Interface 的缩写,译为 Java 本地接口。它允许 Java 代码和其他语言编写的代码进行交互。在android 中提供 JNI 的方式,让 Java 程序可以调用 C/C++语言程序。 android 中很多 Java 类都具有 native 接口,这些接口由本地实现,然后注册到系统中。


1、开发环境

Windows xp sp3 +MyEclipse 8.6+android2.3.3+jdk1.6+Android-ndk-r6b

2、JNI概述

JNI 是 Java Native Interface 的缩写,译为 Java 本地接口。它允许 Java 代码和其他语言编写的代码进行交互。在android 中提供 JNI 的方式,让 Java 程序可以调用 C/C++语言程序。 android 中很多 Java 类都具有 native 接口,这些接口由本地实现,然后注册到系统中。在android系统中实现JNI库需要连接.so共享库,如:lib<文件名>.so。

3、Android NDK概述

Android NDK是一个工具集,让你的Android应用程序里可以内嵌使用本地代码(C/C++)的组件。
Android应用程序运行在Dalvik虚拟机中。NDK可以让你使用C/C++这样的本地代码语言来实现你的应用程序中某些部分。这对某类程序是有帮助的,比如需要重用已有的C代码,或者为了提高运行速度

NDK 提供:
– 编译文件和工具集,用来将你的C/C++源文件编译成本地库。
– 提供一种方式,将对应的本地库内嵌到应用程序包文件(.apk)中,最终发布到Android设备中。
– 本地系统头文件和库,这些头文件和库从Android1.5开始往后都是被支持的。但使用本地活动(native activity)的程序只能运行在Android 2.3或更高的系统中。
– 文档、示例、指南。

4、JNI调用流程图


5、java调用Native

Android虚拟机允许你的应用程序源代码通过JNI调用实现本地代码的方法,需要在应用程序中使用关键字native声明一个或多个方法表明该方法是通过本地调用实现的,如:

public native static int FileOpen(StringpFileName,int openMode);
public native static int FileLength(int fp);
public native static int FileSeek(int fp,int offset,int origin);
public native static CusBuffer FileRead(int fp,int nCount);
public native static int FileWrite(int fp,byte[] buf,int nCount);
public native static int FileClose(int fp);

除了声明native方法以外还必须为这些方法实现提供本地共享库,该共享库最终会被打包到.apk文件中,这些共享库需要更具标准的unix公约来命名lib<文件名>.so,如:libJNI_FileSys.so,其中JNI_FileSys使我们需要加载的库名。在应用程序中加载共享库的方法为:

static{
    System.loadLibrary("JNI_FileSys");
}

注:这里使用的文件名不需要lib前缀以及.so后缀名。

FileSys.java完整代码实现:

package com.luoxudong.jni.reader;
import com.luoxudong.jni.bean.CusBuffer;

/********************************************************************
* [Summary]

*   TODO 文件操作类
* [Remarks]
*   TODO 请在此处详细描述类的功能、调用方法、注意事项、以及与其它类的关系.
 ********************************************************************/
public class FileSys {
static{
    System.loadLibrary("JNI_FileSys");
}

/**
 *
 * [Summary]
 *   MjFileOpen 打开文件
 * @param strFileName 文件名
 * @param openMode 打开类型
 * @return 结果
 *
 */
public int MjFileOpen(String strFileName,int openMode){
    return FileOpen(strFileName, openMode);
}

/**
 *
 * [Summary]
 *   MjFileLength 计算文件长度
 * @param fp 文件句柄
 * @return 文件长度
 *
 */
public int MjFileLength(int fp){
    return FileLength(fp);
}

/**
 *
 * [Summary]
 *   MjFileSeek 文件seek操作
 * @param fp 文件句柄
 * @param offset 读取数据偏移量
 * @param origin 开始位置指针
 * @return
 *
 */
public int MjFileSeek(int fp,int offset,int origin){
	return FileSeek(fp, offset, origin);
}

/**
 *
 * [Summary]
 *   MjFileRead 读取文件数据
 * @param fp 文件句柄
 * @param nCount 读取字节数
 * @return 实际读取字节数
 *
 */
public CusBuffer MjFileRead(int fp,int nCount){
   return FileRead(fp, nCount);
}

/**
 *
 * [Summary]
 *   MjFileWrite 写文件
 * @param fp 文件句柄
 * @param buf 写数据buffer
 * @param nCount 需要写入的字节数
 * @return 实际写入字节数
 *
 */
public int MjFileWrite(int fp,byte[] buf,int nCount){
    return FileWrite(fp, buf, nCount);
}

/**
 *
 * [Summary]
 *   MjFileClose 关闭文件
 * @param fp 文件句柄
 * @return 关闭文件状态
 *
 */
public int MjFileClose(int fp){
	return FileClose(fp);
}

//本地调用
public native static int FileOpen(String pFileName,int openMode);
public native static int FileLength(int fp);
public native static int FileSeek(int fp,int offset,int origin);
public native static CusBuffer FileRead(int fp,int nCount);
public native static int FileWrite(int fp,byte[] buf,int nCount);
public native static int FileClose(int fp);
}

6、实现本地方法调用接口

为了方便我们可以使用javah命令先生成对应C/C++语言中的.h然后再实现这些函数。FileSys.java编译成FileSys.class文件后,使用命令(当前目录为工程bin目录下)javah -jni com.luoxudong.jni.reader.FileSys,此时会在bin目录下生成一个.h文件,文件名格式如下:com_luoxudong_jni_reader_FileSys.h,为了方便本人把文件名改成JNI_FileSys.h。
JNI_FileSys.h代码:

/* DO NOT EDIT THISFILE - it is machine generated */
#include<jni.h>
/* Header for classcom_meijin_dict_reader_FileSys */

#ifndef_Included_com_meijin_dict_reader_FileSys
#define_Included_com_meijin_dict_reader_FileSys
#ifdef __cplusplus
extern"C" {
#endif
    /*
    * Class:com_meijin_dict_reader_FileSys
    * Method:   FileOpen
    * Signature: (Ljava/lang/String;I)I
    */
    JNIEXPORT jintJNICALL Java_com_meijin_dict_reader_FileSys_FileOpen
      (JNIEnv *, jclass, jstring, jint);

    /*
    * Class:com_meijin_dict_reader_FileSys
    * Method:   FileLength
    * Signature: (I)I
    */
    JNIEXPORT jintJNICALL Java_com_meijin_dict_reader_FileSys_FileLength
      (JNIEnv *, jclass, jint);

    /*
    * Class:com_meijin_dict_reader_FileSys
    * Method:   FileSeek
    * Signature: (III)I
    */
    JNIEXPORT jintJNICALL Java_com_meijin_dict_reader_FileSys_FileSeek
      (JNIEnv *, jclass, jint, jint, jint);

    /*
    * Class:com_meijin_dict_reader_FileSys
    * Method:   FileRead
    * Signature:(II)Lcom/meijin/dict/bean/CusBuffer;
    */
    JNIEXPORT jobjectJNICALL Java_com_meijin_dict_reader_FileSys_FileRead
      (JNIEnv *, jclass, jint, jint);

    /*
    * Class:com_meijin_dict_reader_FileSys
    * Method:   FileWrite
    * Signature: (I[BI)I
    */
    JNIEXPORT jintJNICALL Java_com_meijin_dict_reader_FileSys_FileWrite
      (JNIEnv *, jclass, jint, jbyteArray, jint);

    /*
    * Class:com_meijin_dict_reader_FileSys
    * Method:   FileClose
    * Signature: (I)I
    */
    JNIEXPORT jintJNICALL Java_com_meijin_dict_reader_FileSys_FileClose
      (JNIEnv *, jclass, jint);

    #ifdef __cplusplus
    }
    #endif
    #endif

其中JNIEXPORT和JNICALL两个宏是JNI的关键字,表示该函数需要被JNI调用,而jint,jstring,jbyteArray是以JNI为中介使JAVA中对应类型与本地类型对接的类型,jobject为需要返回的java对象,类型对应表如下:

7、实现本地方法调用接口

根据对应的.h文件实现其接口。
JNI_FileSys.c代码:

#include"JNI_FileSys.h"
    #define LOG_TAG"JNI_FileSys"
    #define  LOGI(...) __android_log_print(ANDROID_LOG_INFO,LOG_TAG,__VA_ARGS__)
    #define  LOGE(...) __android_log_print(ANDROID_LOG_ERROR,LOG_TAG,__VA_ARGS__)
    #include<android/log.h>
    #include"FileSys.h"

    /*
    * Class:com_luoxudong_jni_reader_FileSys
    * Method:   FileOpen
    * Signature: ([BI)I
    */
    JNIEXPORT jintJNICALL Java_com_luoxudong_jni_reader_FileSys_FileOpen
      (JNIEnv *env, jclass jobj, jstring pFileName,jint openMode)
    {
      UINT8 *pbyFileName = (UINT8*)(*env)->GetStringUTFChars(env, pFileName, 0);
      LOGI("file name:%s---opentype:%d", pbyFileName, openMode);
      return FileOpen(pbyFileName,openMode);

    }

    /*
    * Class:com_luoxudong_jni_reader_FileSys
    * Method:   FileLength
    * Signature: (I)I
    */
    JNIEXPORT jintJNICALL Java_com_luoxudong_jni_reader_FileSys_FileLength
      (JNIEnv *env, jclass jobj, jint fd)
    {
      return FileLength(fd);
    }

    /*
    * Class:com_luoxudong_jni_reader_FileSys
    * Method:   FileSeek
    * Signature: (III)I
    */
    JNIEXPORT jintJNICALL Java_com_luoxudong_jni_reader_FileSys_FileSeek
      (JNIEnv *env, jclass jobj, jint fd, jintoffset, jint origin)
    {

      return FileSeek(fd, offset,origin);
    }

    /*
    * Class:com_luoxudong_jni_reader_FileSys
    * Method:   FileRead
    * Signature:(II)Lcom/luoxudong/jni/bean/CusBuffer;
    */
    JNIEXPORT jobjectJNICALL Java_com_luoxudong_jni_reader_FileSys_FileRead
      (JNIEnv *env, jclass jobj, jint fd, jintcount)
    {
      int nReadLen = 0;
      UINT8 *pBuf = (UINT8*)malloc(count);
      memset(pBuf, 0, count);

      nReadLen = FileRead(fd, pBuf,count);

      jbyte *pBy = (jbyte *)pBuf;
      jbyteArray jarray =(*env)->NewByteArray(env, nReadLen);
      (*env)->SetByteArrayRegion(env,jarray, 0, nReadLen, pBy);
      jclassm_cls = (*env)->FindClass(env,"com/luoxudong/jni/bean/CusBuffer");
      jmethodID m_mid =(*env)->GetMethodID(env, m_cls, "<init>", "()V");
      jfieldID  m_fid1 = (*env)->GetFieldID(env, m_cls,"buffer", "[B");
      jfieldID  m_fid2 = (*env)->GetFieldID(env, m_cls,"nBufferLen", "I");

      jobject   m_obj = (*env)->NewObject(env, m_cls,m_mid);
      (*env)->SetObjectField(env,m_obj, m_fid1, jarray);
      (*env)->SetIntField(env, m_obj,m_fid2, nReadLen);
      return m_obj;
    }

    /*
    * Class:com_luoxudong_jni_reader_FileSys
    * Method:   FileWrite
    * Signature: (I[BI)I
    */
    JNIEXPORT jintJNICALL Java_com_luoxudong_jni_reader_FileSys_FileWrite
      (JNIEnv *env, jclass jobj, jint fd,jbyteArray buf, jint count)
    {
      jbyte *pjb = (jbyte*)(*env)->GetByteArrayElements(env, buf, 0);
      jsize len =(*env)->GetArrayLength(env, buf);
      UINT8 *byBuf = (UINT8 *)pjb;
      pjb[len] = '\0';
      return FileWrite(fd, byBuf,count);
    }

    /*
    * Class:com_luoxudong_jni_reader_FileSys
    * Method:   FileClose
    * Signature: (I)I
    */
    JNIEXPORT jintJNICALL Java_com_luoxudong_jni_reader_FileSys_FileClose
      (JNIEnv *env, jclass jobj, jint fd)
    {
      return FileClose(fd);
    }

其中头部定义了些andriod中日志输出所需要的宏,以及其他关联的.h文件,在一些地方C跟C++的使用语法不太一样,如在C中调用UINT8 pbyFileName = (UINT8)(*env)->GetStringUTFChars(env, pFileName, 0),
而C++中的语法为env-> (UINT8 *)GetStringUTFChars(pFileName,0)。

8、生成共享库

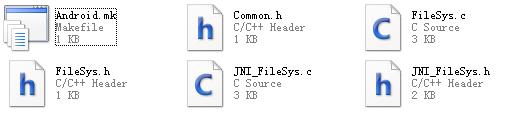

把编写好的各种相关联代码放在一个文件夹中,编写android.mk文件,使用ndk生成libJNI_FileSys.so文件。

会在libs\armeabi目录下生成.so文件

9、应用程序调用

把生成好的libJNI_FileSys.so文件放入java工程的libs目录下,就可以使用了


10、应用程序调用

当然在android下读写文件时还需要配置权限

<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
<uses-permission android:name="android.permission.MOUNT_UNMOUNT_FILESYSTEMS"/>

10、运行效果

附上完整源代码: android JNI调用-文件操作

转载请指明出处:http://www.luoxudong.com/?p=1
